8G+2SFP Ring Type Ethernet Fiber Optic Switch 1000M SFP Distance 16K MAC

Product Categories
E-link China Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

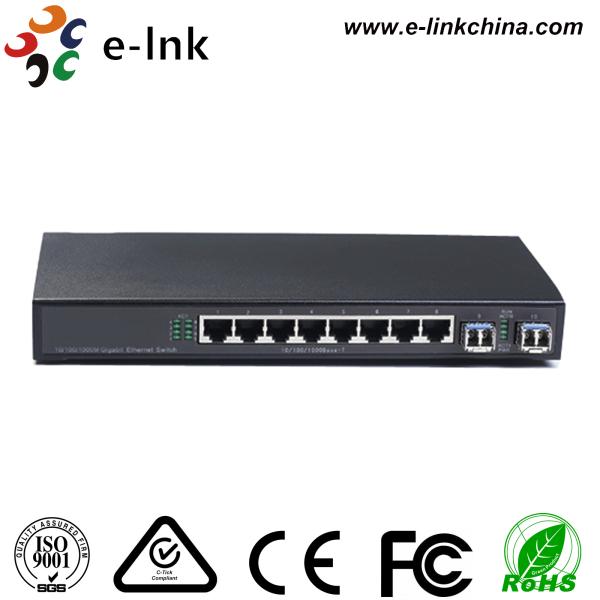

8G+2SFP Ring Type Ethernet Fiber Optic Switch 1000M SFP Distance 16K MAC

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-R2800G-SFP

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram,PayPal

Delivery Time : 3-5 Working Days

Packaging Details : Standard Export Package

Wavelength : SFP Module: 850nm/1310nm/1490nm/1550nm

Distance : 1000M SFP

MAC : 16K

MTBF : 100000 hours

Power : DC12V/1A

Power consumption : 10W

Working temperature : -10~60℃

Dimension : 70mm (H)×290mm(W)×185mm (D)

Contact Now

Product: 8G+2SFP Ring Type Fiber Ethernet Switch

Model: LNK-R2800G-SFP Series

Overview

LNK-R2800G-SFP series is ten ports 100M/1000M Ethernet Switch, provides 8 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP port uplink, supports Web management and SNMP management(optional).

LNK-R2800G-SFP supports SFP hot plug, support RSR(Rapid Super Ring) technology.

Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.

Key Features

  • Support maximum 8 10/100/1000M adaptive RJ45 ports and 2 1000M SFP port uplink
  • It can build 1000M fiber internet, support RSR (Rapid Super Ring technology)
  • Support SFP hot plug
  • Support Jumbo frames
  • Support 100/1000M port full rate, full-duplex non-blocking forwarding
  • Support 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth
  • Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating

Technical Indexes

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX Fast Ethernet,
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
IEEE802.3x Flow control
IEEE802.1q VLAN
IEEE802.1p QoS
IEEE802.1d Spanning Tree
Wavelength SFP Module: 850nm/1310nm/1490nm/1550nm
Distance 1000M SFP
multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m
Port 8 1000M RJ45 ports : 10/100/1000Mbps
2 1000M SFP: 1 Gbps, 1000M SFP
MAC 16K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A
Power consumption 10W

Working

temperature

 -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 70mm (H)×290mm(W)×185mm (D)

Applications

8G+2SFP Ring Type Ethernet Fiber Optic Switch 1000M SFP Distance 16K MAC

8G+2SFP Ring Type Ethernet Fiber Optic Switch 1000M SFP Distance 16K MAC
