Mini 4K HDMI 2.0 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz

Name: Mini 4K HDMI 20 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz
Brand: E-link
Price: 355 USD

China Mini 4K HDMI 2.0 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz wholesale

Brand Name : E-link

Model Number : LNK-109KVM

Certification : CE, RoHS, FCC, ISO9001

Place of Origin : China

MOQ : 1 Pair

Price : $355-$405

Payment Terms : T/T,Western Union,MoneyGram,paypal,Credit Card

Supply Ability : 1000pcs/month

Delivery Time : 2-7working days

Packaging Details : Mini HDMI 2.0 KVM Extender Standard Export Package

Video Standards : HDMI 2.0, HDCP 2.2

Resolution : 4K@60Hz / 4K@30Hz / 1080p / 720p

Transmission Distance : Up to 300m over OM4 multimode fiber

Data Rate : 18Gbps (6Gbps per channel)

Operating Temperature : 0℃ to +55℃

Dimensions : 93 × 70 × 28mm

Contact Now

Mini 4K HDMI 2.0 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz

Overview

This Mini 4K HDMI 2.0 KVM USB Fiber Extender transmits uncompressed UHD video and

USB keyboard/mouse signals up to 300 meters over OM4 multimode fiber. Supporting

resolutions up to 4K@60Hz 4:4:4, it ensures lossless image quality and stable performance.

Featuring LC connectors, plug-and-play installation, and local HDMI loop output, it is ideal

for control rooms, conference systems, and long-distance display setups.

Features

Supports uncompressed HDMI 2.0 video up to 4K@60Hz 4:4:4

Extends HDMI and USB keyboard/mouse signals up to 300m over OM4 fiber

LC multimode fiber interface with 18Gbps bandwidth

Local HDMI loop output for simultaneous monitoring

Plug-and-play design for quick, easy installation

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Data speed	18Gbps(6 Gbps/CH)
	Resolution range	4K@60Hz/4K@30Hz/1080p/720p
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	LC connector
	Fiber type	OM4 Multimode
	Wavelength	850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM4 Multimode fiber: 300M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	TX:＜1.5W; RX:＜1W
	Temperature	Operating: 0℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	93 x 70 x 28(mm)
	Gross weight	0.25KG
	The warranty	1-year free warranty

Ordering Information

Model	Description
LNK-109KVM	Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters

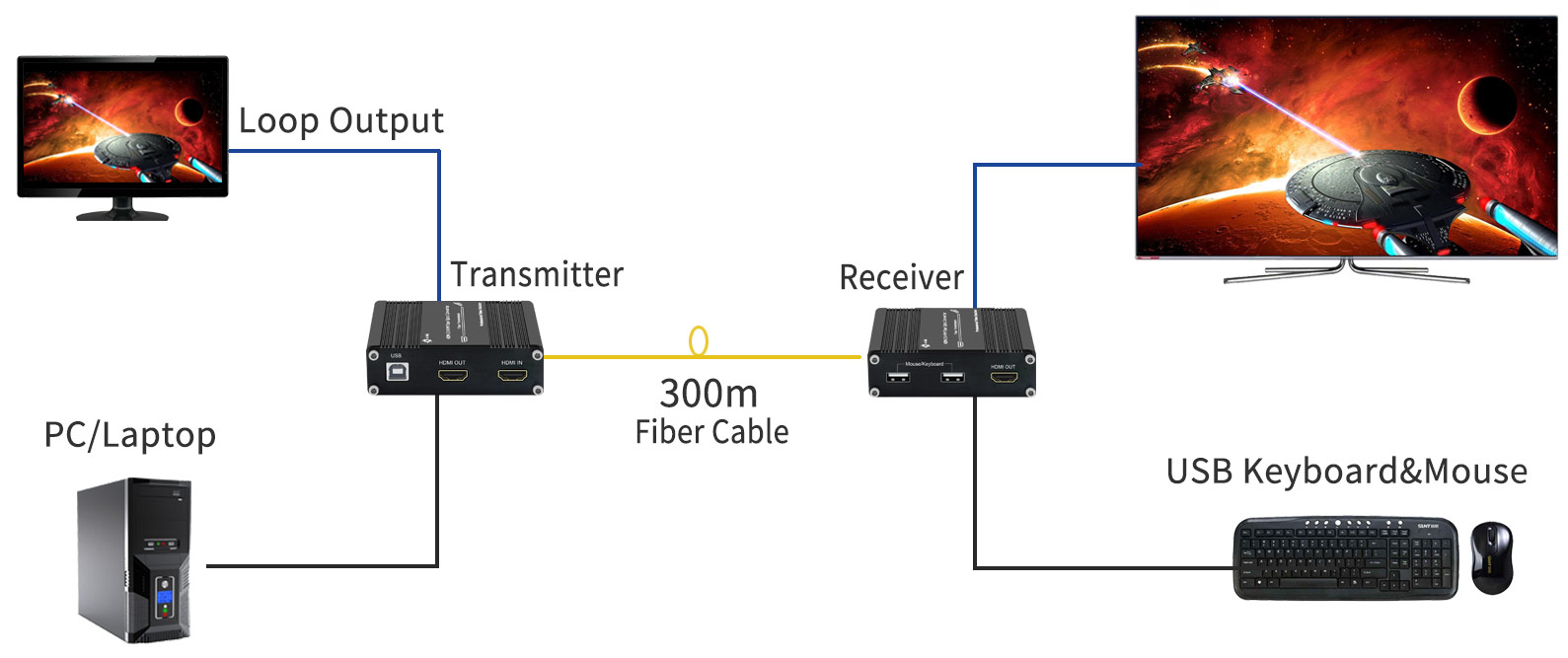

Application

Panel
